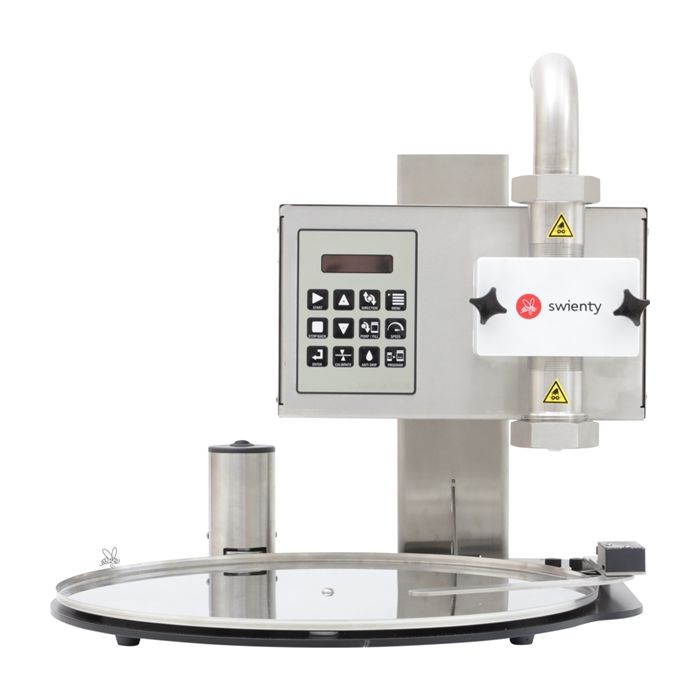

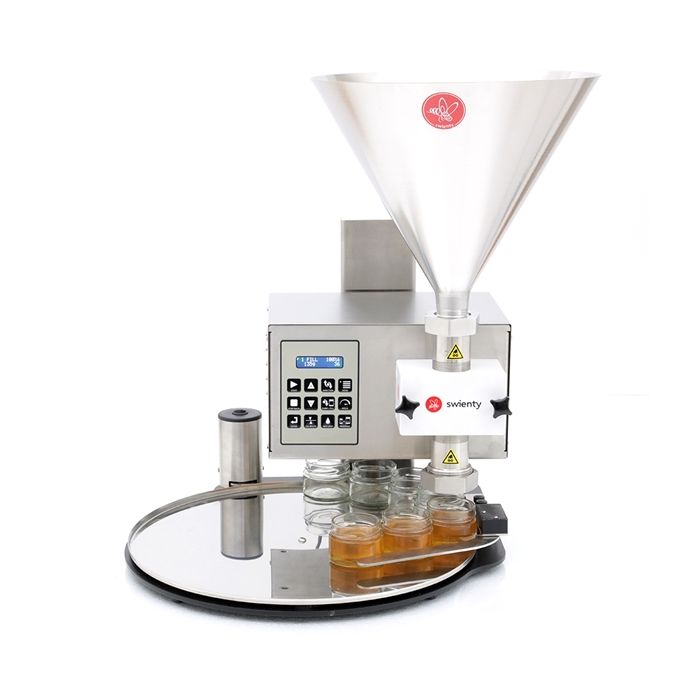

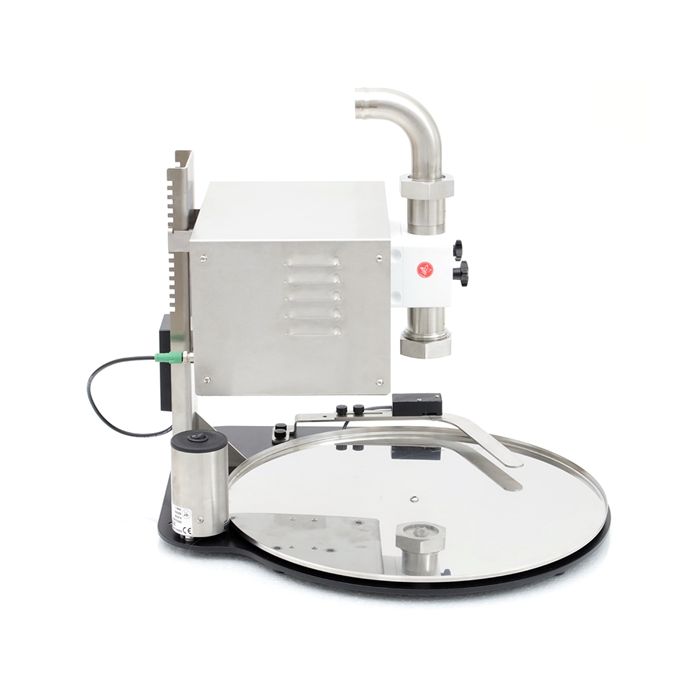

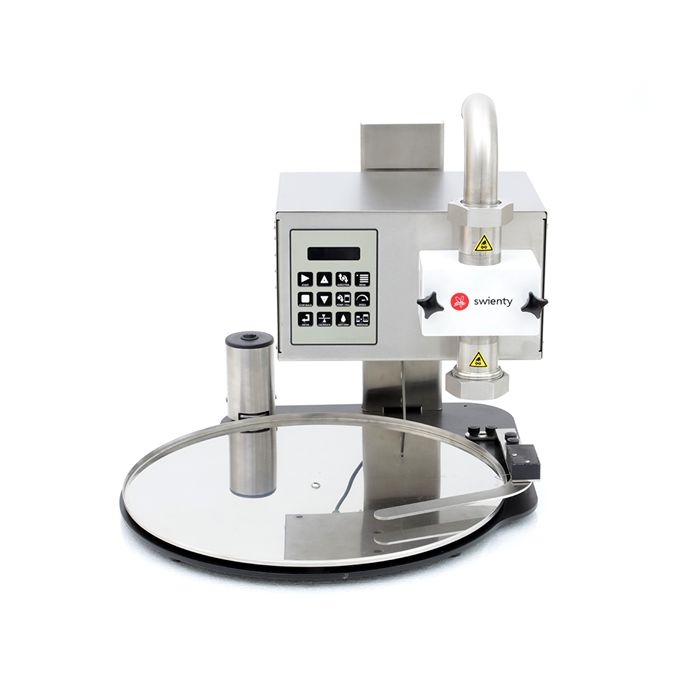

Swienty DAM 1000 Filling Station with 45Ø Tabletop

Complete Fillingstation 45Ø

  • The DANA Api MATIC 1000 is a filling machine with a gear pump.
  • A strong low voltage DC motor drives the gear pump with the help of a helical gear box.
  • The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
  • The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
  • The machine works precisely and is easy to program for different substances.
  • As a pump, the machine works both ways and can be set to different speeds.
  • All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.
  • When the machine is standing on the legs, you can use jars up to 105 mm in height.

Fittings Included:

  • 110059 Counterflow valve
  • 115815 Dosing syringe 0-60 mL
  • 500110F Nut for BS fitting 1½"
  • 110065C Complete cut-off-cross ø20
  • 110165 1½" / 38mm hose
  • 110110A 1½" bent BS fitting
  • 110175 1½" Hoseclamp

(Hopper must be ordered separately: item No. 110640)

With the machine you recieve following spare parts:

  • 2 x 110065D Cross-cut Ø20
  • 2 x 110072 Black rubber diaphragm
  • 2 x 500212 Gasket BS 1½
  • 2 x 502740 Handmountable nuts for pumphead
  • 2 x 508037 O-ring 37x2 NBR 70
  • 1 x 508082 O-ring 82x2 NBR 70

Various nozzles, fittings, 10 liter funnel, floor stand and switch can be purchased separately.

$7,646.00
SKU#: 110890 In stock
Quantity:
