Everything here helps you wire bee frames and ready them for fresh foundation, whether you are nailing up kits or bringing old timber frames back into service. Start with the frame: a groove cleaner, standard or heavy-duty stainless, scrapes old wax from the bottom bar groove so a new sheet slides in. Brass eyelets, in packs of 100, sit in the end bar holes and stop the wire cutting into the wood and going slack.
Our bee frame wire is 0.5mm, sold by the 500g in two metals. Galvanised steel is the cheaper option, and 500g covers roughly 180 to 200 full depth frames. Annealed 304 stainless costs more but stands up to acidic honey where galvanised can corrode, so it suits frames you will extract for many seasons. Loose wires can often be saved with a frame wire crimper, which tightens the strand in one pass.
To set wire into beeswax foundation, lay the frame over the matching embedding board (Ideal, Manley, WSP and full depth sizes) and run the brass embedder along each strand. For bigger batches, an electric embedding arm runs from our 13.8V DC transformer; see more wax foundation embedding tools. Heavy-duty zip-lock bags hold three full depth frames and keep wax moth off them in storage. Rather not wire bee frames yourself? Choose ready-wired assembled timber bee frames.

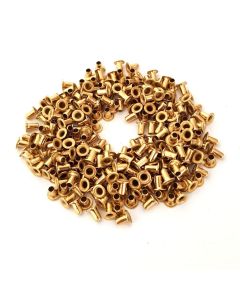

Brass Eyelets are used in the small holes in wood frame end bars to prevent reinforcing wire from gouging the wood, resulting in slack frame wire.
Check Quantity Price Breaks
CONTACT BEEWISE FOR AVAILABILITY
1800 233 947 or 1800 BEEWISE

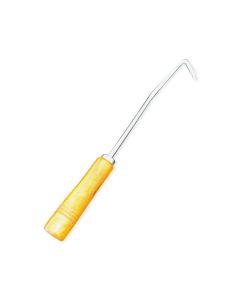

After removing old wax foundation, clean the frame gooves with this very effective tool in readiness for the insertion of new wax or plastic foundation.
Heavy Duty in Stainless Steel.
After removing old foundation, clean the frame gooves with this very effective tool in readiness for the insertion of new wax or plastic foundation.
Frame Wire – annealed 0.5mm 304 Stainless-Steel.
- Remember, honey is acidic and corrodes tinned and galvanised steel frame wire.
- Grade 202 SS is not much better than plain steel so its short lived and subject to corrosion.
- Corrosion products will contaminate your honey.
- Play safe - use 304SS wire
AVAILABILITY
1800 BEEWISE / 1800 233 947

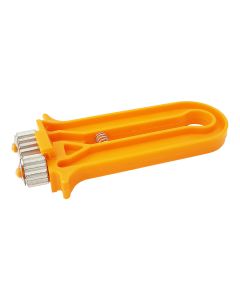

Frame Wire Crimper - HD SS.
No straining of the wire or sore hands! This is an essential for any Beekeeper who prefers wiring their own frames, it makes the process easier, quicker and less painful!
Unlike battery chargers, this transformer is designed to supply high current loads reliably all-day. Beewise has thrashed their transformer day long for about 3 years – works perfectly with Wax Embedder SKU 2102 and Wax Embedding Board SKU H2113.
Features
- Up to 20A output
- Fixed 13.8V voltage
- High efficiency switchmode design
- Low noise and ripple <100mV
- 2% voltage regulation
- Short circuit protected output
- Fused input
- Measures 25 x 21 x 12cm
- Rugged industrial grade product
- Buy well - buy once
Ideal Wax Embedder Board supports wax foundation in wire embedding process.
Works in conjunction with Electric Wax Embedder
WSP Wax Embedder Board supports wax foundation in wire embedding process.
Works in conjunction with Electric Wax Embedder
CONTACT BEEWISE FOR AVAILABILITY
1800 233 947 or 1800 BEEWISE
These large zip lock freezer bags will hold 3 full depth frames for storage over winter, an ideal way to keep wax moth off your frames during winter.
Perfect for safe storage of wax foundation.
- Heavy duty 180µm, super tough, resilient and hard to puncture; cf a standard bin liner of 30 µm
- Food safe Polyethylene | BPA Free | SGS Certified
- Moisture and air proof with zip lock
Bag measures 40.5 cm x 60 cm
