Swienty Packing

Complete Fillingstation 45Ø

• The DANA Api MATIC 1000 is a filling machine with a gear pump.
• A strong low voltage DC motor drives the gear pump with the help of a helical gear box.
• The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
• The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
• The machine works precisely and is easy to program for different substances.
• As a pump, the machine works both ways and can be set to different speeds.
• All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.
• When the machine is standing on the legs, you can use jars up to 105 mm in height.

Fittings Included:

• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 mL
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110165 1½" / 38mm hose
• 110110A 1½" bent BS fitting
• 110175 1½" Hoseclamp

(Hopper must be ordered separately: item No. 110640)

With the machine you recieve following spare parts:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508082 O-ring 82x2 NBR 70

Various nozzles, fittings, 10 litre funnel, floor stand and switch can be purchased separately.

The beginner model from Swienty

• The DANA Api MATIC 1000 is a filling machine with a gear pump.
• A strong low voltage DC motor drives the gear pump with the help of a helical gear box.
• The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
• The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
• The machine works precisely and is easy to program for different substances.
• As a pump, the machine works both ways and can be set to different speeds.
• All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.
• When the machine is standing on the legs, you can use jars up to 105 mm in height.

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110046 Legs
• 110165 1½" / 38mm hose
• 110110A 1½" bent BS fitting
• 110175 1½" Hoseclamp

With the machine you recieve spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508082 O-ring 82x2 NBR 70

Various nozzles, fittings, 10 litre funnel, table- and floor stand and switch can be purchased.

• The DANA api MATIC 1000 is a filling machine with a gear pump
• A strong low voltage DC motor drives the gear pump with the help of a helical gear box.
• The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
• The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
• The machine works precisely and is easy to program for different substances.
• As a pump, the machine works both ways and can be set to different speeds.
• All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.

With the table stand, you have the opportunity to easily and quickly adjust the height of your filling machine if you are filling jars at different heights.

The stand is made of strong stainless steel and it has a jar guide in plastic, which you can hold the jar against, so it is centred exactly under the nozzle. The jar guide can also be adjusted back and forth depending on the diameter of your jar.

You can adjust the stand to 13 different heights at 0.5 cm intervals.

The stand can be used for jars that has a complete height between 3.5 cm and 23.5 cm. It measures 37 x 32 x 41 cm and weighs 4.6 kg.

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110165 1½" / 38mm hose
• 110110A 1½" bent BS fitting
• 110175 1½" Hoseclamp

With the machine you recieve spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508082 O-ring 82x2 NBR 70

Various nozzles, fittings, 10 litre funnel, floor stand and turntable can be purchased.

• The DANA api MATIC 2000+ is a filling machine with a gear pump.
• A strong low voltage DC motor drives the gear pump with the help of a planetary gear.
• The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
• The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
• The machine works precisely and is easy to program for different substances.
• As a pump, the machine works both ways and can be set to different speeds.

All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110056 Legs
• 110172 2" / 50mm hose
• 110130 1½-2" bent BS fitting
• 110176 2" Hoseclamp

With the machine you recieve spare part sets containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508096 O-ring 96x3 NBR 70

Various nozzles, fittings, 10/20 litre funnel, tablestand and switch can be purchased.

The machine can easily be expanded with e.g. a turntable and / or conveyor belt.

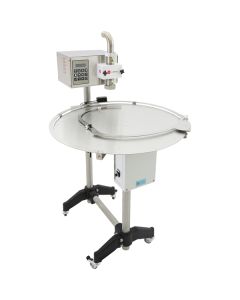

Complete Filling station Ø70

This cost-effective filling station, where the DANA api MATIC 1000 filling machine and an automatic filling table are combined into one unit.

• The DANA api MATIC 1000 is a filling machine with a gear pump
• A strong low voltage DC motor drives the gear pump with the help of a helical gear box
• The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function
• The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters
• The machine works precisely and is easy to program for different substances
• As a pump, the machine works both ways and can be set to different speeds
• All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean
• Empty jars are placed on the table top and then transported automatically through a rail to a wire switch

• Once the jar hits the wire switch, the table stops and the filling machine starts filling the jar
• Once the jar is filled the table starts turning again until the next jar arrives  the wire switch
• The rail is very easy to adjust to different jars sizes
• In this unit, the filling machine can be adjusted both horizontally and vertically to accommodate various jar sizes
• This product needs to be assembled before use
• An assembly manual is included, and assembly typically takes about 30 minutes

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110046 Legs
• 110165 1½" / 38mm hose
• 110110A 1½" bent BS fitting
• 110175 1½" Hoseclamp

With the machine you receive spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508082 O-ring 82x2 NBR 70

Various nozzles and fittings can be purchased.

Delivery times and shipping costs may vary; please contact us for a quote.

Fillingstation Ø70 with DANA api MATIC 2000+

Complete filling station, where the DANA api MATIC 2000+ and an automatic filling table (70 cm) are combined into one unit.
Empty jars are placed on the table top and then transported automatically to a . Once the wire switch hits the jar, the table stops and the filling machine starts filling the jar. Once the jar is filled the table starts turning again until the next jar arrives  the wire switch. The rail is very easy to adjust to different jars sizes.

In this unit, the filling machine is mounted on wheels and can be adjusted both horizontally and vertically to accommodate various jar sizes.
With this station you can easily fill around 800 jars (500g) per hour. Many different jar sizes can be filled with this setup.

This product needs to be assembled before use.
An assembly manual is included, and assembly typically takes about 30 minutes.

Complete Filling Station

A PRO semi-automatic filling station, where the DANA api MATIC 2000 filling machine and an automatic filling table are combined into one unit.

This filling station has been constructed for an optimised workflow. This fillingstation comes with an integrated liddispenser and lidfitter.

With this station you will be able to fill up to 610kg/880LB of honey per hour into containers starting from 10g/0,5oz to indefinite (realistically 1-2kg/2.2-4.4LB - as much as this reinforced table can carry). The filling precision is +/-1g.

The attached side surfaces make it possible to put more glasses ready for bottling. One or 2 employees can easily perform the entire filling process in one.

At the Apimondia trade fair in Ljubljana, the Swienty lidfitter was awarded a silver medal for its technical innovation. It is very easy to use. You take a filled glass, put the lid on. The handle is pressed down and the lid is screwed onto the glass. The torque can be set between 0-10 nm.

The lid dispenser is placed close at hand to make the work process as convenient and efficient as possible. The dispenser can either be filled with the lid while it sits on the ProStation or you can easily lift it off and fill it with lids (Without the use of tools)

Technical data DANA api MATIC 2000+incl. electric stand

• Type of machine: Computer controlled gear pump
• Filling capacity: 10 g - infinity g (honey)
• Weight unit: mL / g / oz
• Precision: +/- 1g
• Pump capacity: approx. 610 kg/h
• Programs: 20+ options to program
• Power supply: 90-305VAC 50/60Hz
• Powerconsumption: 575W
• Sound level: The sound pressure level of the pump is less than 70 dB(A)
• Weight: approx. 17,5 kg
• Dimensions: 51,5 x 31 x 18,5 cm
• Connections: 2" BS hose connection on both sides of the pump
• Power consumption PRO station 110888: 959W

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110056 Legs
• 110172 2" / 50mm hose
• 110130 1½-2" bent BS fitting
• 110176 2" Hoseclamp

With the machine you recieve spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508096 O-ring 96x3 NBR 70

Filling Station Ø100

The filling station consists of a DANA Api MATIC 2000+ filling machine and an automatic turntable.

The table consists of a stainless-steel table top with a railing that divides the table into two sections: a feeding and a collection zone.

The DANA Api MATIC 2000+ is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a planetary gear. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.

The machine works precisely and is easy to reprogram for a different amount or product.

All parts in contact with the product are made from food grade plastic or stainless steel which can easily be separated and washed in the dishwasher

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 mL
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110056 Legs
• 110172 2" / 50mm hose
• 110130 1½-2" bent BS fitting
• 110176 2" Hoseclamp

With the machine you receive spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508096 O-ring 96x3 NBR 7

Various nozzles, fittings and 10/20 litre funnel can be purchased.

Delivery:  To minimise cost machines delivered direct from stocks held in Sweden

Hopper - For mounting on DaM filling machines.

• Perfect for small batches.
• Capacity 10kg honey.
• Stainless steel.
• Diameter 38cm / height 29cm

If you use the 10 litre hopper in connection with a DAM 1000 filling machine, we recommend you also purchase the stand SKU 110044 or support the filling machine otherwise.

Use a lid on the Hopper Funnel SKU 110640 during the breaks between the fillings.
This way you prevent dirt and dust in the honey.
