Most extractor breakdowns come down to one small worn part, and the right honey extractor parts let you fix the machine rather than replace it. Most of our extractor spares are made to suit the common Chinese-made manual extractors many Australian hobbyists start with, in 2, 3 and 4-frame sizes, plus coupling bushes for larger 6 and 8-frame units.
Before ordering honey extractor replacement parts, check the shaft on your machine. Our replacement handles fit manual 2F, 3F and 4F extractors with a 12mm shaft, but one version suits a round shaft end and the other a shaft with 10mm square ends. Coupling bushes are sized the same way: the smaller bush takes shafts of 11 to 12.5mm with a 30mm overall diameter, while the larger one takes a 15mm shaft at 35mm overall. If the gearing is worn, a complete gearbox shaft and handle assembly is available for manual 2 and 3-frame or 4-frame extractors, and 316 stainless bearing balls for the basket come as a pair.
Königin owners will find a silicone gasket, 60mm outside and 45mm inside diameter, that seals the honey gate on Königin extractors and tanks. For a new or spare outlet, see our honey gates and taps. When an old spinner needs more than honey extractor parts, compare our manual and motorised honey extractors or step up to a Königin stainless extractor.

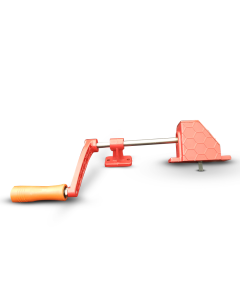

Complete Bearbox Shaft and Handle assembly for common Chinese manual extractors.
Complete set of Bearbox Shaft and Handle for common Chinese 4-Frame manual extractors
Extractor Handle to fit manual 2F, 3F, 4F extractors having 12mm round shafts
Extractor Handle to fit manual 2F, 3F, 4F extractors having a 12mm shaft with 10mm square ends

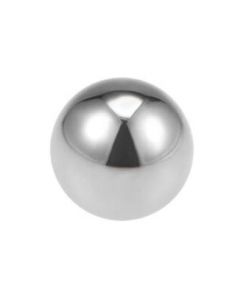

Steel balls (2) for Chinese extractor basket

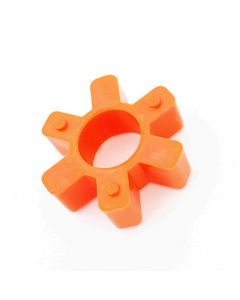

Extractor Shaft Coupling Bush for specific 2, 3 & 4 frame Chinese extractors (spinners)
Shaft diameter 11.0 - 12.5mm; Overall Diameter 30mm
Extractor Electric 6 & 8-Frame Shaft Coupling Bush
Shaft diameter 15mm; Overall Diameter 35mm
