Complete Filling Station

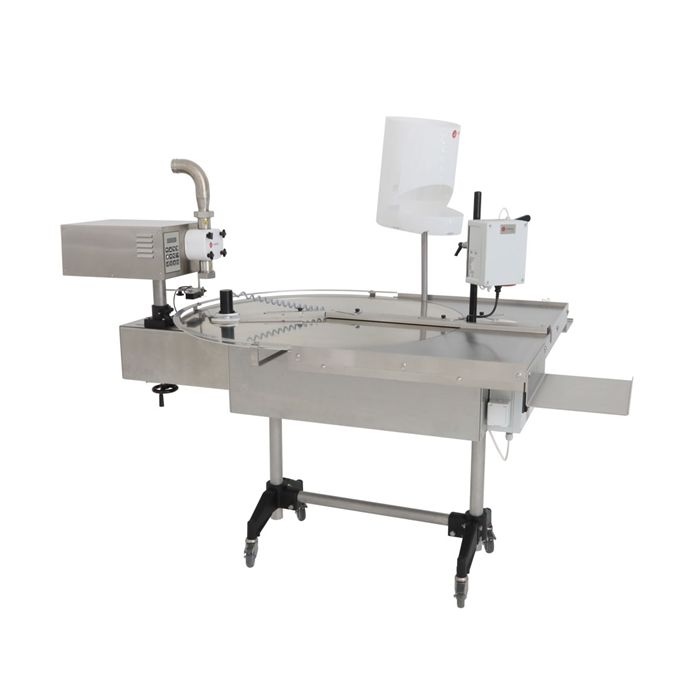

A PRO semi-automatic filling station, where the DANA api MATIC 2000 filling machine and an automatic filling table are combined into one unit.

This filling station has been constructed for an optimized workflow. This fillingstation comes with an integrated liddispenser and lidfitter.

With this station you will be able to fill up to 610kg/880LB of honey per hour into containers starting from 10g/0,5oz to indefinite (realistically 1-2kg/2.2-4.4LB - as much as this reinforced table can carry). The filling precision is +/-1g.

The attached side surfaces make it possible to put more glasses ready for bottling. One or 2 employees can easily perform the entire filling process in one.

At the Apimondia trade fair in Ljubljana, the Swienty lidfitter was awarded a silver medal for its technical innovation. It is very easy to use. You take a filled glass, put the lid on. The handle is pressed down and the lid is screwed onto the glass. The torque can be set between 0-10 nm.

The lid dispenser is placed close at hand to make the work process as convenient and efficient as possible. The dispenser can either be filled with the lid while it sits on the ProStation or you can easily lift it off and fill it with lids (Without the use of tools)

Technical data DANA api MATIC 2000+incl. electric stand

• Type of machine: Computer controlled gear pump
• Filling capacity: 10 g - infinity g (honey)
• Weight unit: mL / g / oz
• Precision: +/- 1g
• Pump capacity: approx. 610 kg/h
• Programs: 20+ options to program
• Power supply: 90-305VAC 50/60Hz
• Powerconsumption: 575W
• Sound level: The sound pressure level of the pump is less than 70 dB(A)
• Weight: approx. 17,5 kg
• Dimensions: 51,5 x 31 x 18,5 cm
• Connections: 2" BS hose connection on both sides of the pump
• Power consumption PRO station 110888: 959W

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110056 Legs
• 110172 2" / 50mm hose
• 110130 1½-2" bent BS fitting
• 110176 2" Hoseclamp

With the machine you recieve spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508096 O-ring 96x3 NBR 70
