Swienty Filling Station Ø100 turntable & DANA api MATIC 2000
Filling Station Ø100

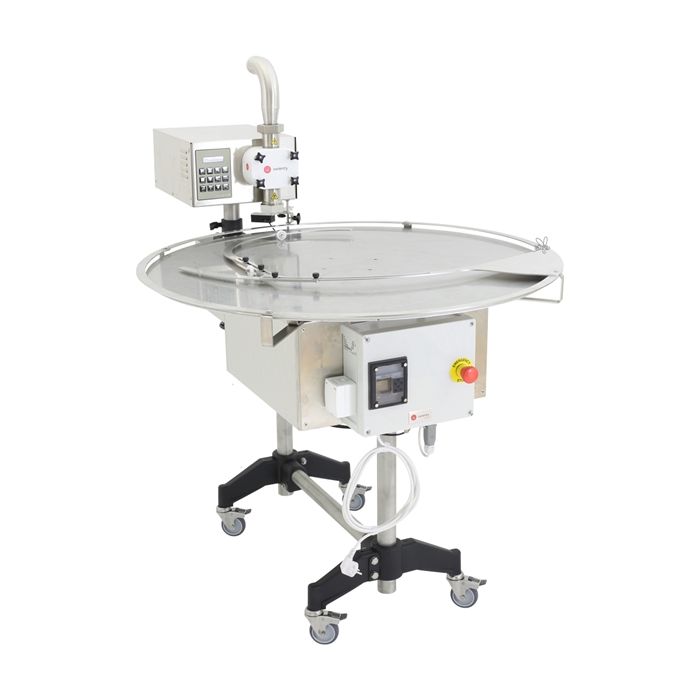

The filling station consists of a DANA Api MATIC 2000+ filling machine and an automatic turntable.
The table consists of a stainless-steel table top with a railing that divides the table into two sections: a feeding and a collection zone.
The DANA Api MATIC 2000+ is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a planetary gear. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
The machine works precisely and is easy to reprogram for a different amount or product.
All parts in contact with the product are made from food grade plastic or stainless steel which can easily be separated and washed in the dishwasher
Fittings Included:
- 110075 Foot pedal
- 110059 Counterflow valve
- 115815 Dosing syringe 0-60 mL
- 500110F Nut for BS fitting 1½"
- 110065C Complete cut-off-cross ø20
- 110056 Legs
- 110172 2" / 50mm hose
- 110130 1½-2" bent BS fitting
- 110176 2" Hoseclamp
With the machine you receive spare parts set containing:
- 2 x 110065D Cross-cut Ø20
- 2 x 110072 Black rubber diaphragm
- 2 x 500212 Gasket BS 1½
- 2 x 502740 Handmountable nuts for pumphead
- 2 x 508037 O-ring 37x2 NBR 70
- 1 x 508096 O-ring 96x3 NBR 7
Various nozzles, fittings and 10/20 liter funnel can be purchased.
Delivery: To minimise cost machines delivered direct from stocks held in Sweden
